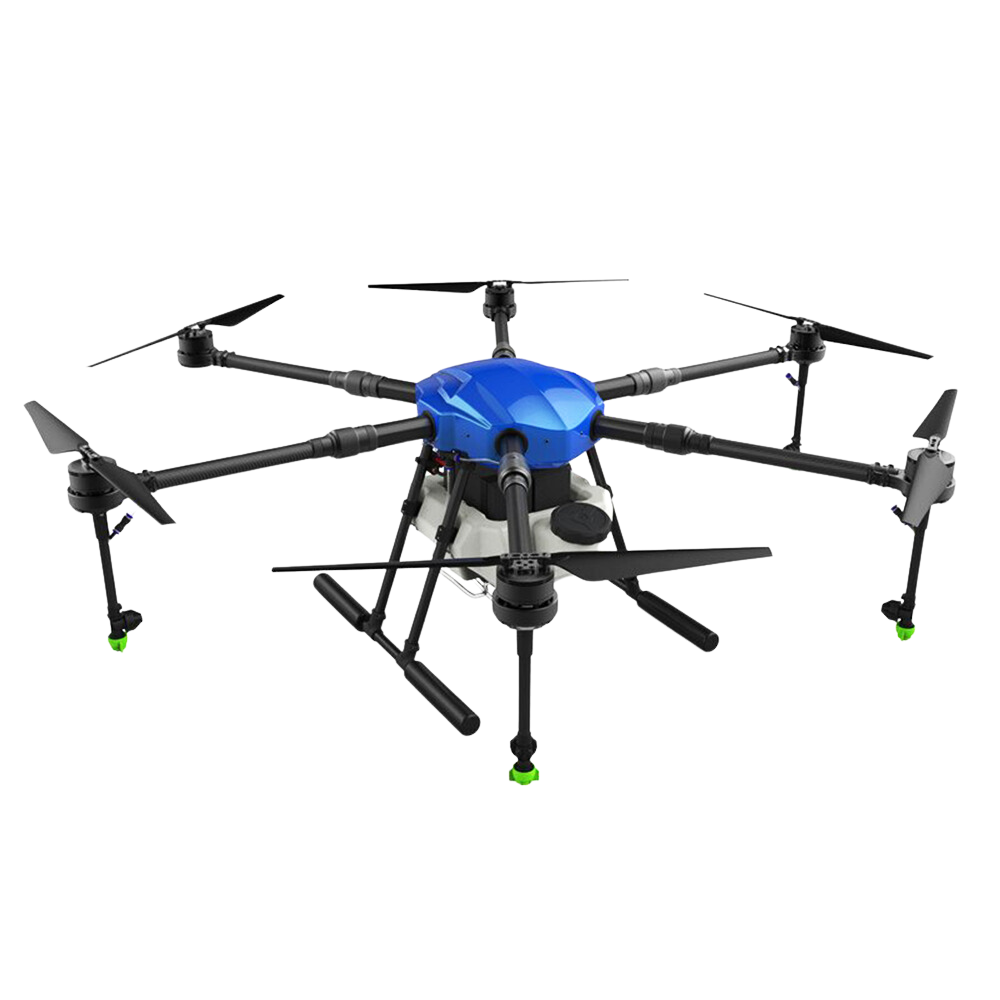

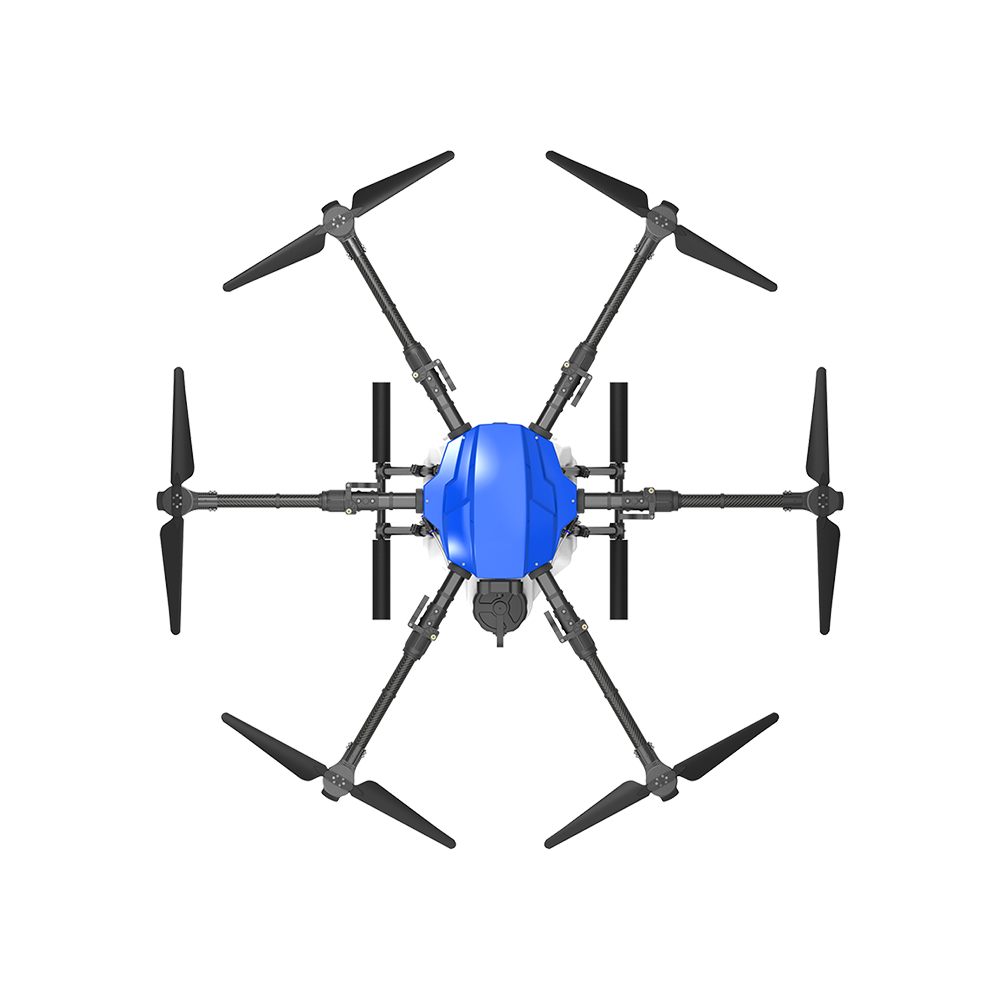

Agri_Sprayer1 is one of the best aimed toward increasing the production of agricultural products by spraying insecticides and fertilizers on crops spread across a wide area of land in less time.
Its high efficiency of carrying liquid(16litre) reduces the number of laborers, time, cost, and personal health risk involved while spraying.
Its light weight and compact foldable design makes it highly portable; as a result it can be carried anywhere to perform spraying operations.

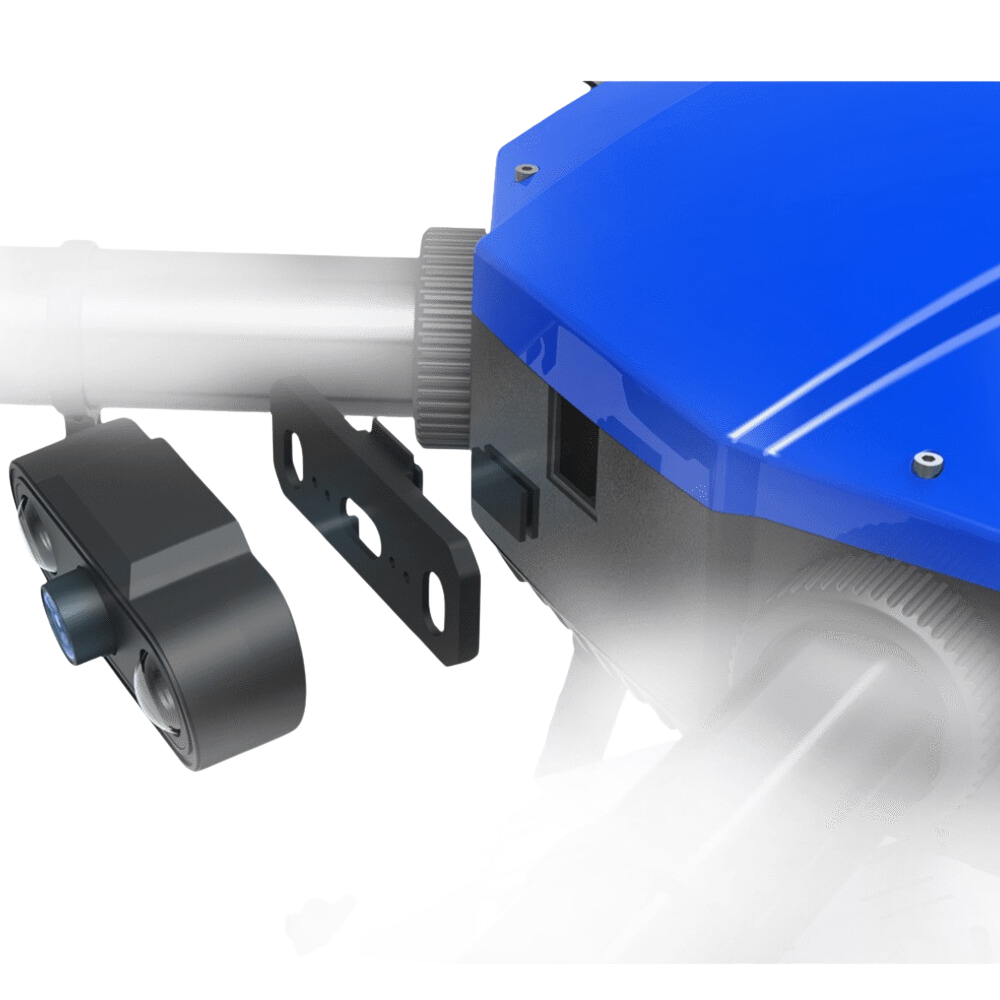

Agri_Sprayer1 is full proof against all the obstacles coming in its path with its obstacle avoidance sensors and over this it possesses one click return to home feature.
Specification
Tank capacity
16 Liters
Transmission Range
5 km
Max Take-off Weight
38kg
Flight time
15-20 minutes
Coverage Rate
10-12 acres/hour
Spraying Width
2-3.5 meters
Max. Flying Altitude
40m
Flying Speed
1-10m/sec
Frame Weight
11kg
Frame Type
Foldable

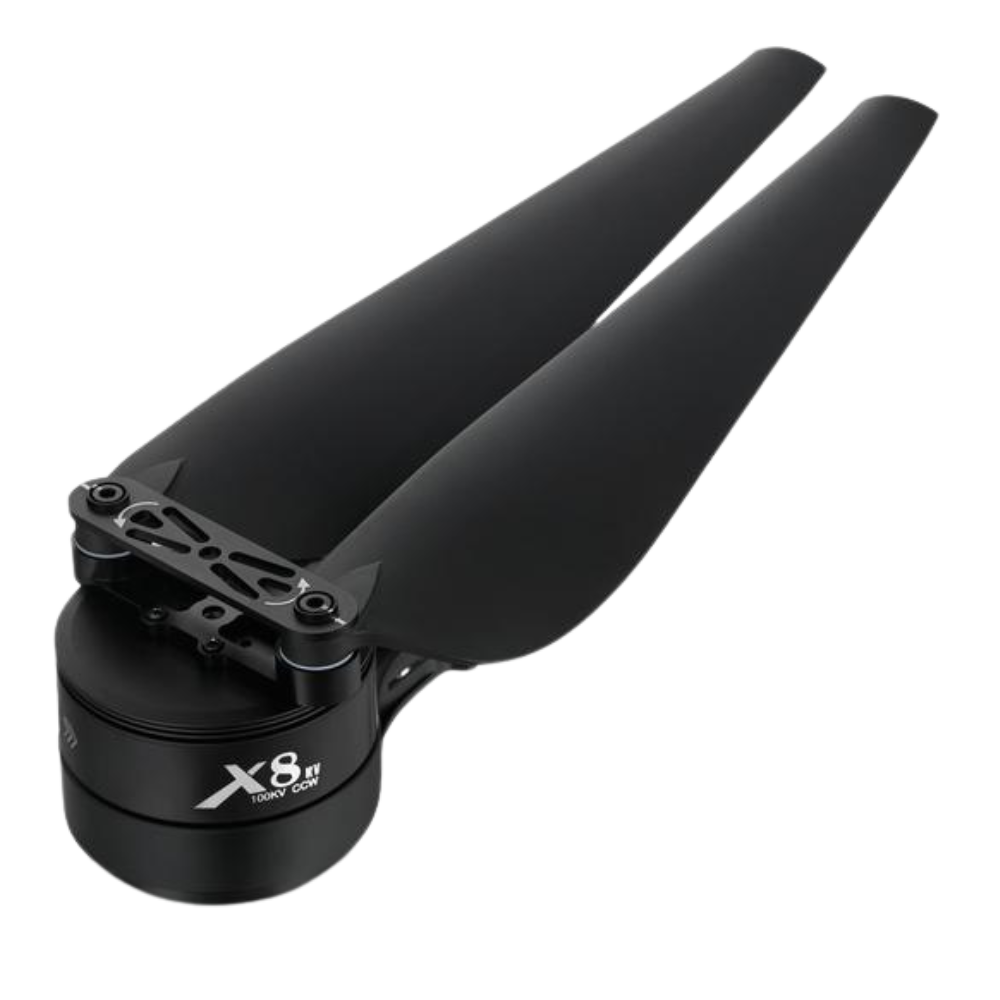

PROPULSION SYSTEM
The propulsion system used for Agri Drone 1 is waterproof and has multiple protection functions
Battery
The battery is 22.2V 25C lithium polymer. This allows us to have capacity of 22000mAh
Flight Controller
The Flight controller is the brain of a drone. The FC used here has state of the art technology built into it. It has a faster H7 SOC with 1MB ram, triple redundant IMU sensors, and redundant power system for all components.
GPS
The GPS equipped with ublox M8 high precision GNSS system. This GPS is best in class and enables us to achieve highly accurate geotagging for the data captured.

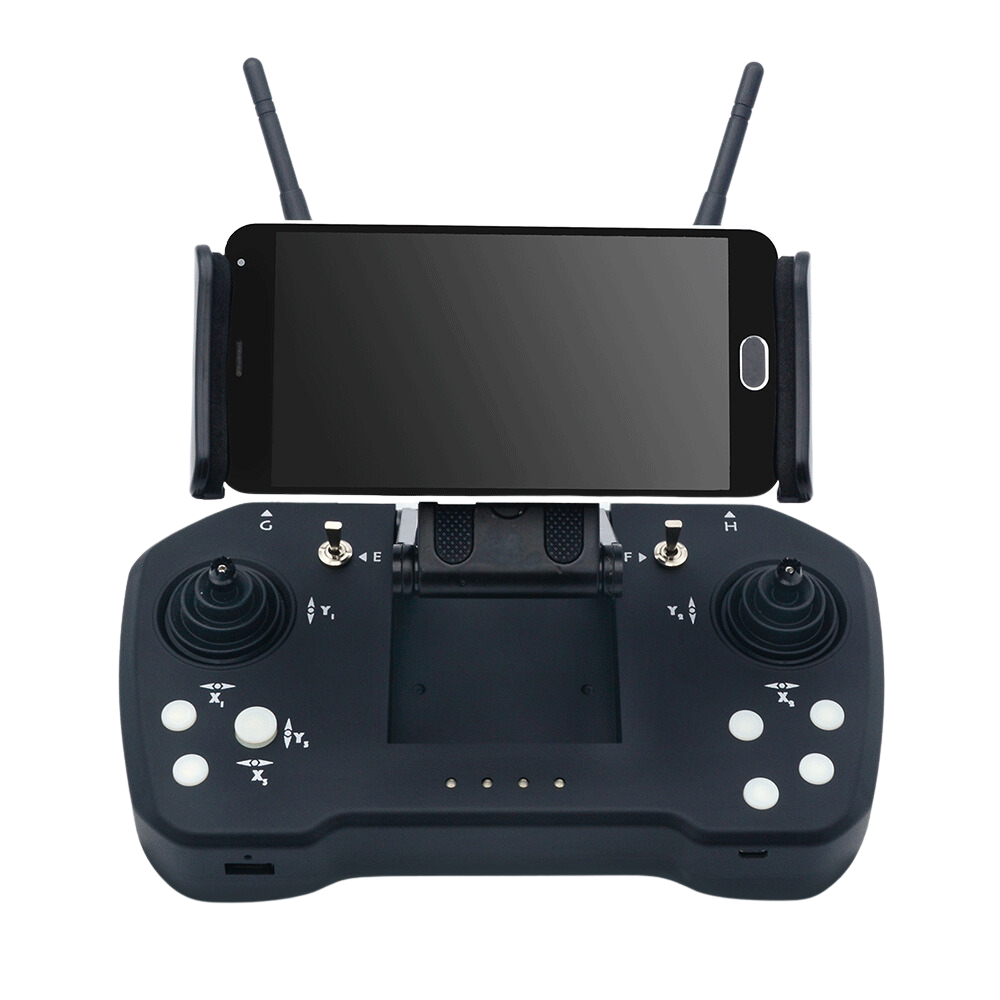

Skydroid T12
The drone is controlled via radio communication. Our system of radio communication gives range of upto 5km.

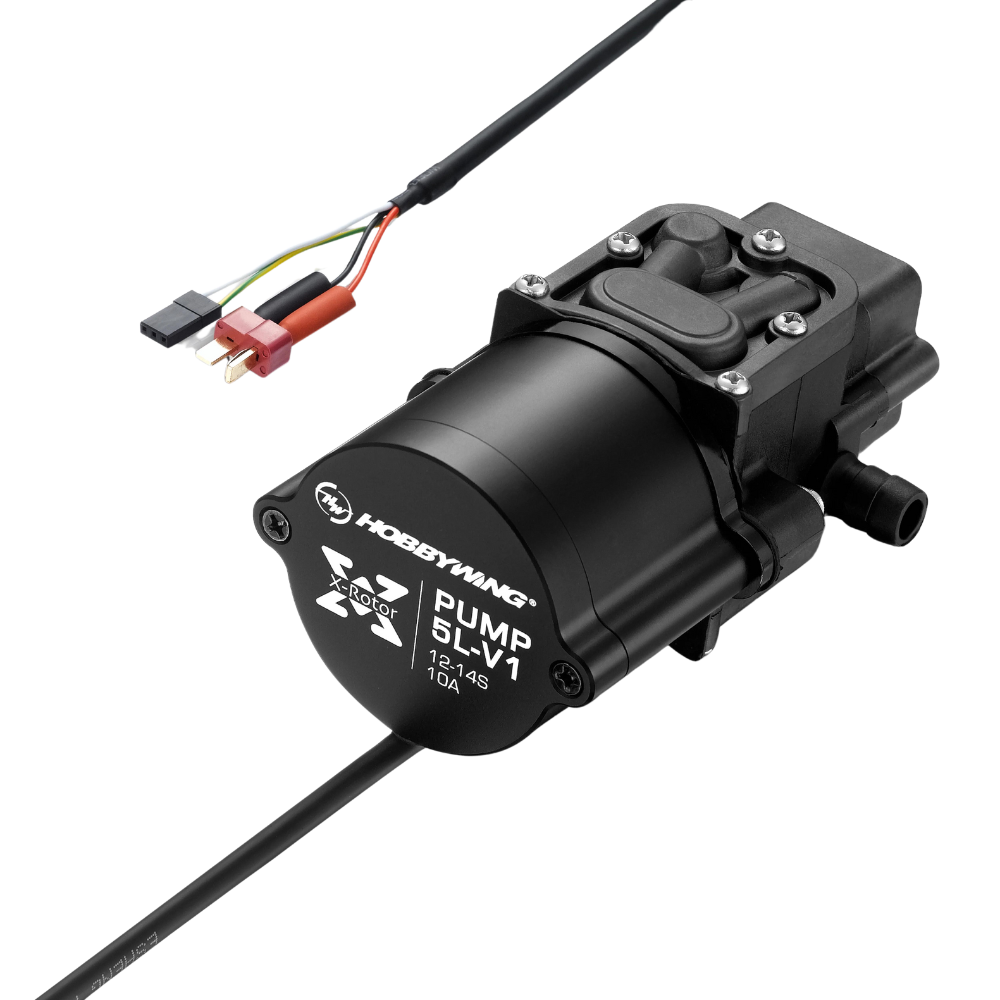

Water Pump
water pump is approximately 3-5 times the life of an ordinary water pump. It can be used for more than 500 hours without worrying about pump damage

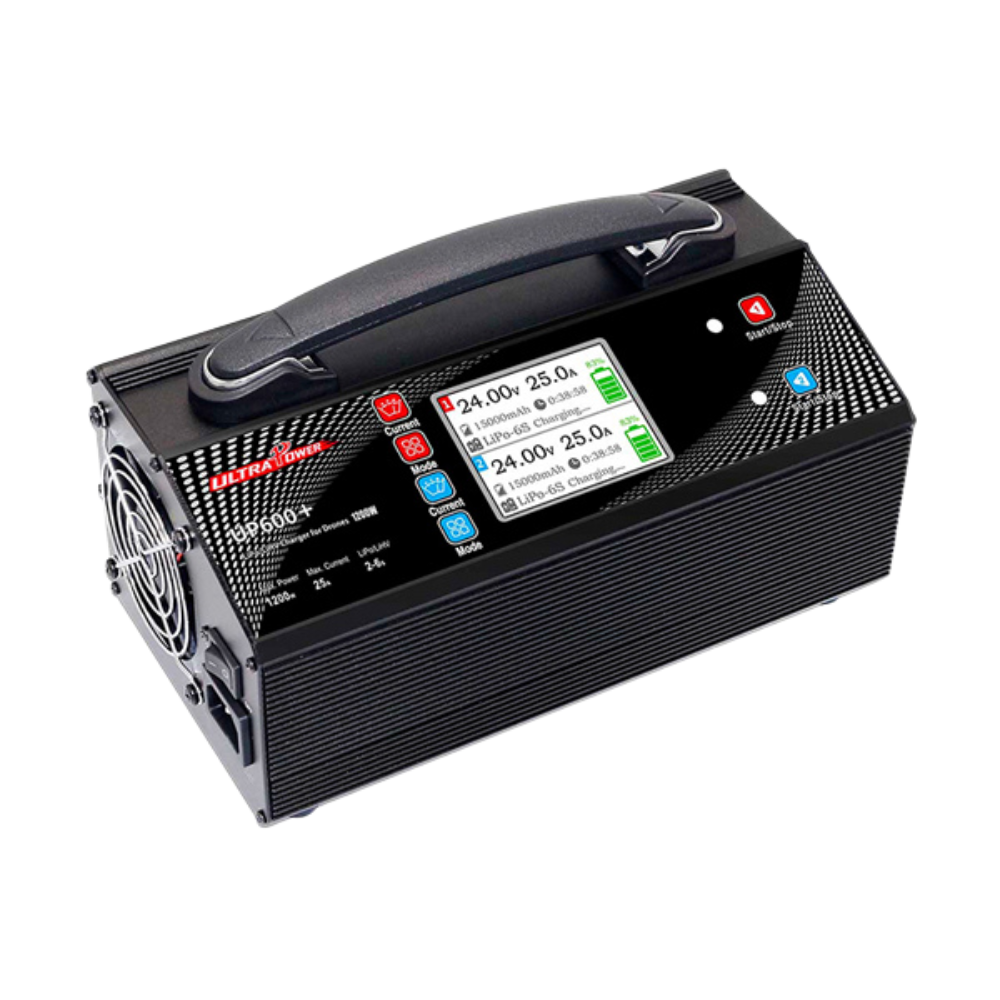

Charging Unit
Ultra Power UP600 allow two pieces of 2–6S Semi Solid/LiPo batteries to be charged

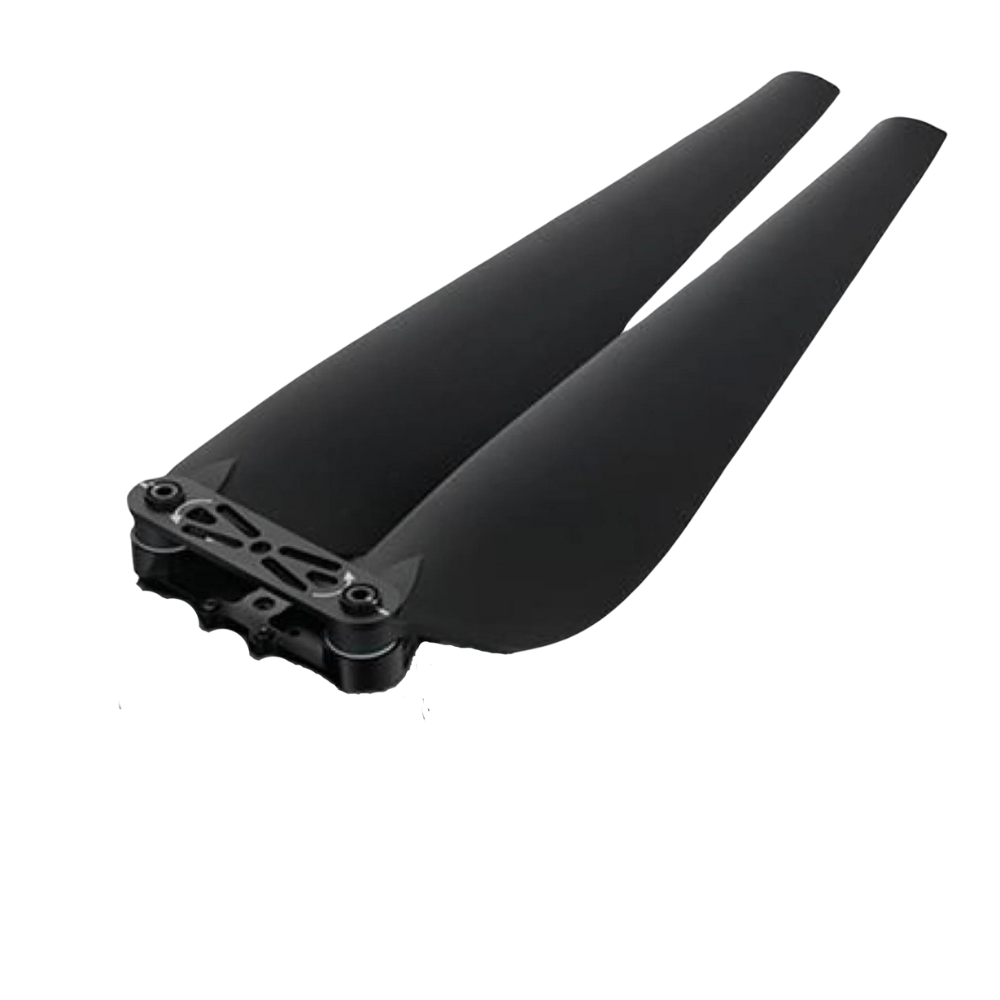

Propellers
The propellers used by us is very strong and efficient. Every propeller is checked for its strength and efficiency before installation.
Frame\Body
Strong And Durable Body

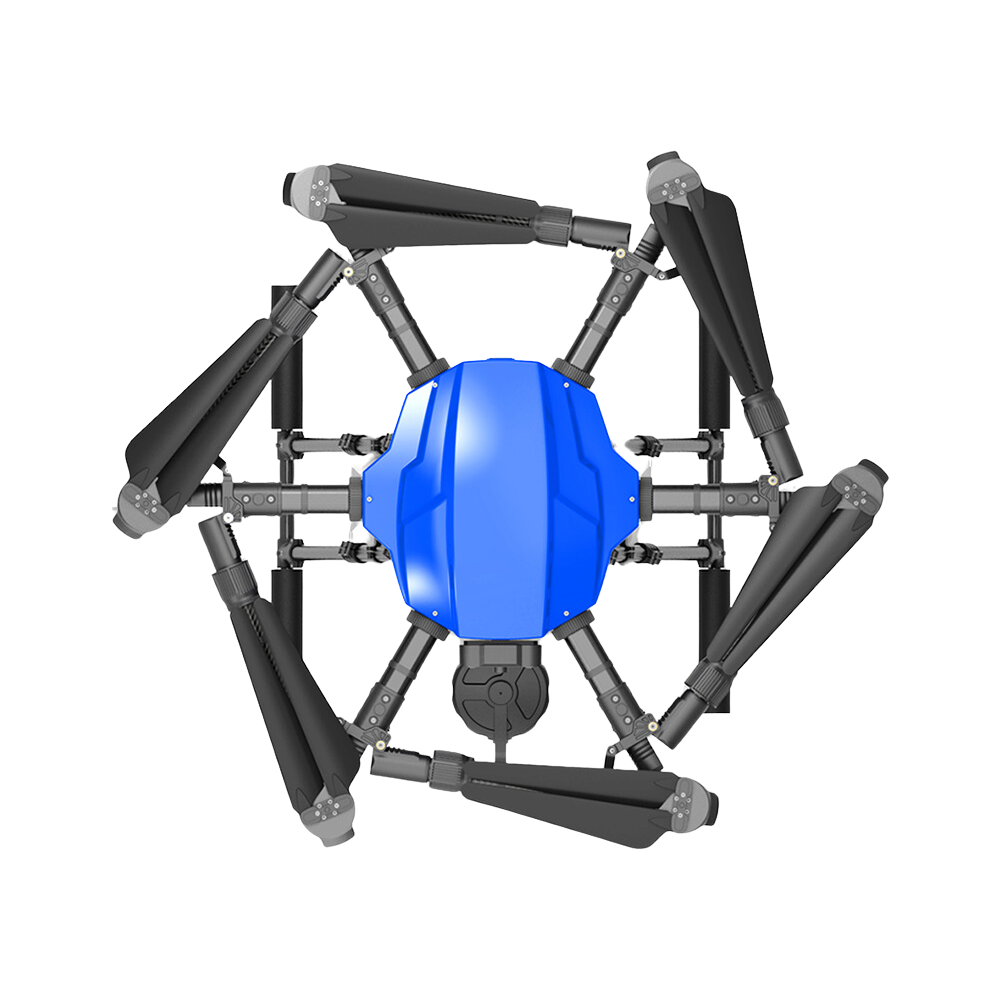

Cross Folding Structure
Fully Waterproof Body
Integrated Power Supply Wiring

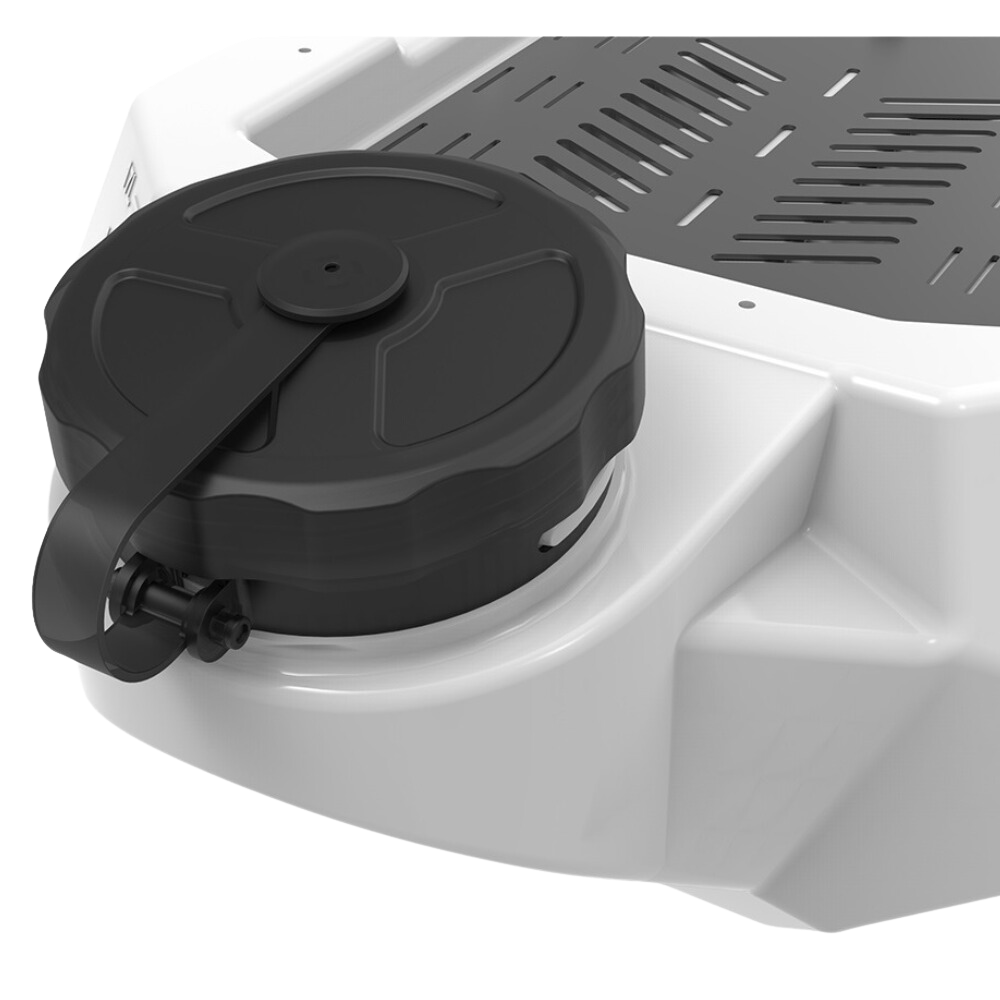

Enlarged Tank Inlet
